Product Summary

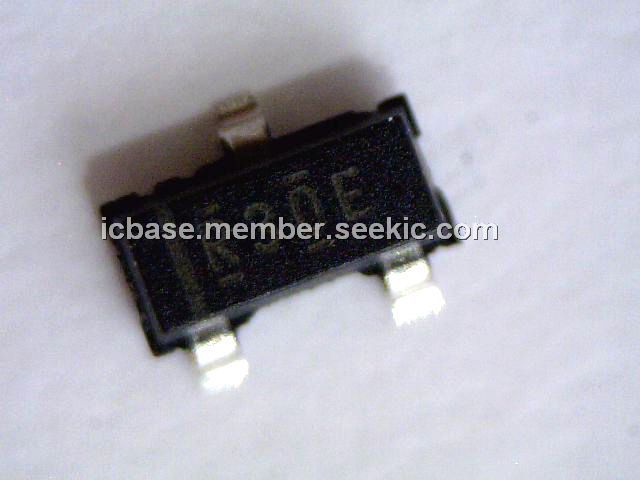

The REF3040AIDBZT is a precision, low power, low voltage dropout voltage reference.
Parametrics
Absolute maximum ratings: (1)Supply Voltage:7.0V; (2)Output Short-Circuit:Continuous; (3)Operating Temperature:–40℃ to +125℃; (4)Storage Temperature:–65℃ to +150℃; (5)Junction Temperature:+150℃; (6)Lead Temperature (soldering, 10s):+300℃.
Features
Features: (1)MicroSIZE package: SOT23-3; (2)low dropout: 1mV; (3)high output current: 25mA; (4)high accuracy: 0.2%; (5)LOW IQ: 50μA max; (6)excellent specified drift performance:50ppm/℃ (max) from 0℃ to +70℃, 75ppm/℃ (max) from –40℃ to +125℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 REF3040AIDBZT |
Texas Instruments |
Voltage & Current References 4.096V 50ppm/DegC 50uA SOT23-3 Series |
Data Sheet |
|
|
||||||||||||||
|
REF3040AIDBZTG4 |
Texas Instruments |
Voltage & Current References 4.096V 50ppm/DegC 50uA SOT23-3 Series |
Data Sheet |
|
|
||||||||||||||
