Product Summary

The STM32F103ZCT6 is a High-density performance line ARM-based 32-bit MCU with 256 to 512KB Flash, USB, CAN, 11 timers, 3 ADCs, 13 communication interfaces.

Parametrics

Absolute maximum ratings: (1)External main supply voltage (including VDDA and VDD): -0.3 to +4.0 V; (2)Input voltage on five volt tolerant pin: VSS-0.3 to +5.5 V; (3)Input voltage on any other pin: VSS-0.3 to VDD+0.3 V; (4)Variations between different VDD power pins: 50 mV max; (5)Variations between all the different ground pins: 50 mV max.

Features

Features: (1)Core: ARM 32-bit Cortex.-M3 CPU: 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access, Single-cycle multiplication and hardware division; (2)Memories: 256 to 512 Kbytes of Flash memory, up to 64 Kbytes of SRAM, Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories, LCD parallel interface, 8080/6800 modes; (3)Clock, reset and supply management: 2.0 to 3.6 V application supply and I/Os, POR, PDR, and programmable voltage detector (PVD), 4-to-16 MHz crystal oscillator.

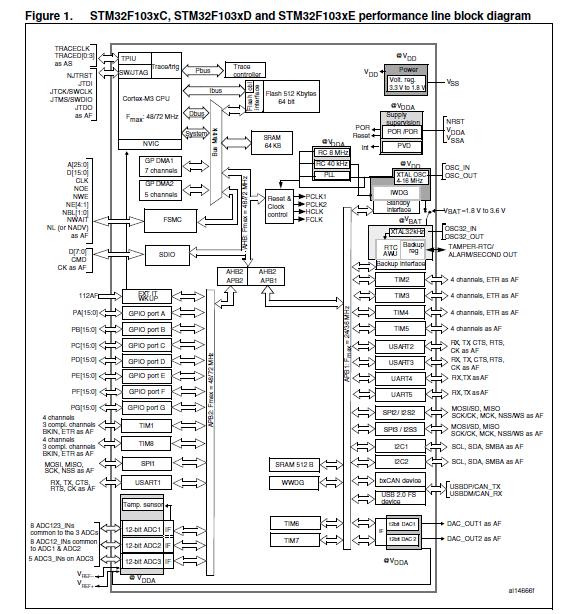

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

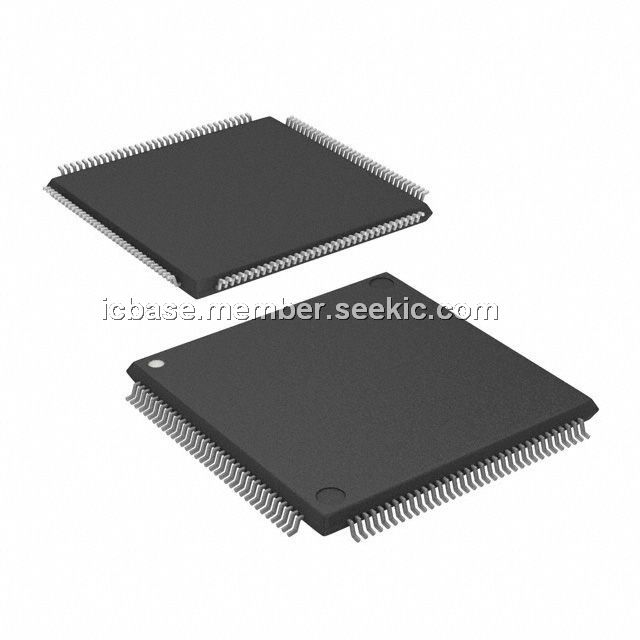

STM32F103ZCT6
STM32F103ZCT6
STMicroelectronics
ARM Microcontrollers (MCU) 32BIT Cortex M3 H/D 261 to 512 USB/CAN
Data Sheet
0-215: $4.17
215-250: $3.80
250-500: $3.56
500-1000: $3.28
