Product Summary

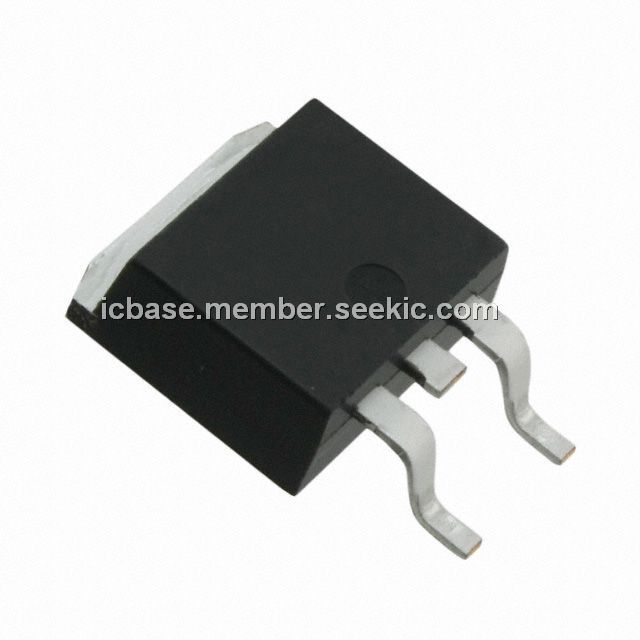

The NCV4274DT50RKG is a precision micro-power voltage regulator with an output current capability of 400 mA available in the DPAK package.
Parametrics
Absolute maximum ratings: (1)I, Input-to-Regulator Voltage, VI: -42 to 45 V; (2)I, Input peak Transient Voltage to Regulator with Respect; (3)to GND, VI: 60 V max; (4)Q, Regulated Output Voltage, VQ: -1.0 to 40 V when VQ = VI; (5)GND, Ground Current, IGND: 100 mA max; (6)Junction Temperature, TJ: 150℃; (7)Storage Temperature, TStg: -50 to 150℃; (8)ESD Capability, Human Body Model, ESDH:B 4 kV min; (9)ESD Capability, Machine Model, ESDMM: 200 V min; (10)ESD Capability, Charged Device Model, ESDCDM:1 kV min.
Features
Features: (1)Low 150 A Quiescent Current at 1 mA load current; (2)400 mA Output Current Capability; (3)Fault Protection; (4)Very Low Dropout Voltage; (5)AEC-Q100 Qualified; (6)NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes; (7)These are Pb-Free Devices.

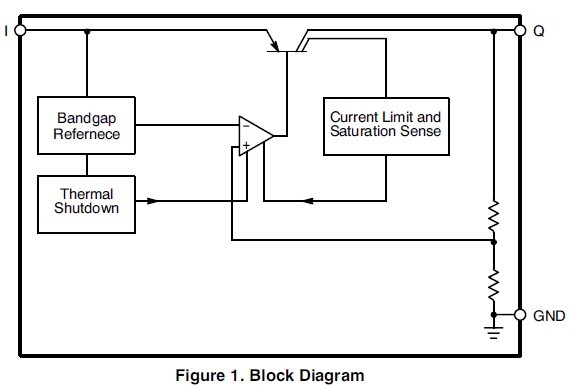

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NCV4274DT50RKG |
ON Semiconductor |
Low Dropout (LDO) Regulators ANA 400mA LDO REG |
Data Sheet |
Negotiable |
|
||||||||||||
