Product Summary
The EL7532IYZ-T7 is a synchronous, integrated FET 2A step-down regulator with internal compensation. It operates with an
input voltage range from 2.5V to 5.5V, which accommodates supplies of 3.3V, 5V, or a Li-Ion battery source. It is available in the 10-pin MSOP package.
Parametrics
Absolute maximum ratings: (1)VIN, VDD, POR to SGND: -0.3V to +6.5V; (2)LX to PGND: -0.3V to (VIN + +0.3V); (3)RSI, EN, VO, FB to SGND: -0.3V to (VIN + +0.3V); (4)PGND to SGND: -0.3V to +0.3V; (5)Peak Output Current: 2.4A; (6)Operating Ambient Temperature: -40℃ to +85℃; (7)Storage Temperature: -65℃ to +150℃; (8)Junction Temperature: +145℃.
Features
Features: (1)Less than 0.15 in2 (0.97 cm2) footprint for the complete 2A converter; (2)Components on one side of PCB; (3)Max height 1.1mm MSOP10; (4)100ms Power-On-Reset output (POR); (5)Internally-compensated voltage mode controller; (6)Up to 94% efficiency; (7)Over-current and over-temperature protection.

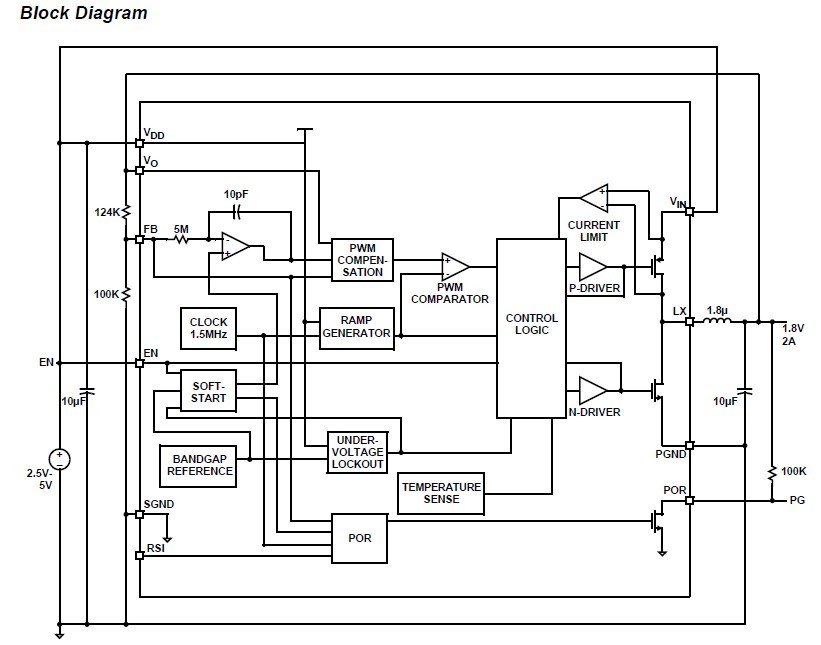

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EL7532IYZ-T7 |
|
IC REG BUCK SYNC ADJ 2A 10MSOP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
EL7501 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
EL7512 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
EL7512C |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
EL7512CY-T7 |
|
IC REG CTRLR BST PWM 10-MSOP |
Data Sheet |
Negotiable |
|
||||||
|
EL7512CYZ |
|
IC REG CTRLR BST PWM 10-MSOP |
Data Sheet |
Negotiable |
|
||||||
|
EL7513IWT-T7 |
|
IC LED DRIVR WHITE BCKLGT TSOT-8 |
Data Sheet |
Negotiable |
|
||||||
